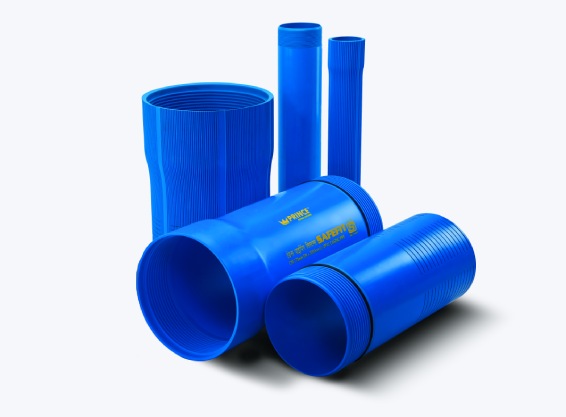

Designed to be used in borewell applications, these piping systems are made from a high-quality PVC compound that ensures they have high tensile strength, can withstand high impact and have minimum water friction. What makes them even more unique is the CIRCLIP locking system designed specially to withstand pressure during underground water extraction.
Specification of Safefit Submersible Delivery Pipes / Rising Main Pipes
Product OD - Outside Dia. ND - Nominal Dia. in mm | Pressure Kg/cm2 | Safe total Pump Delivery Head (m) | Ultimate Breaking Load (Kg) | Safe Pulling Load (Kg) | Screen Colour | STD Packing | ||
---|---|---|---|---|---|---|---|---|
Size | Type | Category | ||||||
1 OD-33.30 ND-25.00 |
Coupler | V4 | 12.5 | 125 | 850 | 500 | Royal Claret | 28 |
V4 | 17 | 170 | 950 | 600 | Green | |||
Medium | 22 | 220 | 1250 | 750 | Orange | |||
Std | 38 | 380 | 1750 | 1100 | Red | |||
1¼ OD-42.10 ND-32.00 |
Coupler | V4 | 12.5 | 125 | 1350 | 800 | Royal Claret | 20 |
V4 | 17 | 170 | 1500 | 900 | Green | |||
Medium | 21 | 210 | 1725 | 1000 | Orange | |||
Std | 30 | 300 | 2350 | 1400 | Red | |||
Heavy | 39 | 390 | 2900 | 1750 | Blue | |||
1½ OD-48.20 ND-40.00 |
Coupler | V4 | 16 | 160 | 1850 | 1100 | Green | 16 |
Medium | 22 | 220 | 2400 | 1450 | Orange | |||
Std | 26 | 260 | 2750 | 1650 | Red | |||
Heavy | 39 | 390 | 3700 | 2250 | Blue | |||
2 OD-60.20 ND-50.00 |
Coupler | Medium | 14 | 140 | 2450 | 1450 | Orange | 12 |
Std | 20 | 200 | 3500 | 2100 | Red | |||
Heavy | 27 | 270 | 4600 | 2800 | Blue | |||
2½ OD-75.00 ND-65.00 |
Coupler | Medium | 11 | 110 | 3100 | 1800 | Orange | 8 |
Std | 16 | 160 | 4500 | 2700 | Red | |||
Heavy | 26 | 260 | 6450 | 3900 | Blue | |||
3 OD-88.00 ND-80.00 |
Coupler | Medium | 11 | 110 | 4100 | 2450 | Orange | 6 |
Std | 17 | 170 | 6400 | 3800 | Red | |||
Heavy | 26 | 260 | 8900 | 5300 | Blue | |||
4 OD-113.00 ND-100.00 |
Coupler | Medium | 10 | 100 | 6500 | 3900 | Orange | 4 |
Std | 15 | 150 | 9250 | 5550 | Red | |||
Heavy | 26 | 260 | 14450 | 8700 | Blue |
Note: Submersible Pipes with “Bell Form” available on 1” & 11/4” -V4 category with 12.5 & 17Kg Pressure rating.
Dimensions of Medium Well Screen (RMS) & Deep Well Screen (RDS) Pipes with Ribs / Ribbed Screen Pipes
Nominal Diameter (DN) | Mean Outer Diameter of the Pipe (d) (mm) | Medium Well Screen (RMS) | Deep Well Screen (RDS) | |||||
---|---|---|---|---|---|---|---|---|
Mean Outer Diameter over Connection, (d’s’) | Wall Thickness ’e’ (under ribs) (mm) | Mean Outer Diameter over Connection,(d’s’) | Wall Thickness ’e’ (under ribs) (mm) | |||||
mm | Min | Max | Max | Min | Max | Max | Min | Max |
40.0 | 52.00 | 52.20 | 56.00 | 3.50 | 4.00 | -- | -- | -- |
50.0 | 64.00 | 64.20 | 69.00 | 4.00 | 4.60 | -- | -- | -- |
80.0 | 92.00 | 92.30 | 98.00 | 4.00 | 4.60 | -- | -- | -- |
100.0 | 117.00 | 117.30 | 124.00 | 5.00 | 5.70 | 129.00 | 7.00 | 7.90 |
115.0 | 129.00 | 129.30 | -- | -- | -- | 141.00 | 7.50 | 8.50 |
125.0 | 144.00 | 144.40 | 154.00 | 6.50 | 7.30 | 156.00 | 8.00 | 9.00 |
150.0 | 169.00 | 169.40 | 182.00 | 7.50 | 8.50 | 184.00 | 9.50 | 10.70 |
175.0 | 204.00 | 204.50 | 219.00 | 8.80 | 9.80 | 221.00 | 11.80 | 13.60 |
200.0 | 229.00 | 229.50 | 247.00 | 10.00 | 11.20 | 251.00 | 13.00 | 14.80 |
250.0 | 284.00 | 284.50 | 302.00 | 12.50 | 14.00 | 309.00 | 16.00 | 17.60 |
300.0 | 334.00 | 334.60 | 356.00 | 14.50 | 16.20 | 363.00 | 19.00 | 21.00 |
350.0 | 404.00 | 404.70 | 432.00 | 17.50 | 19.50 | 437.00 | 21.50 | 23.90 |
400.0 | 454.00 | 454.80 | 483.00 | 19.50 | 21.70 | 494.00 | 23.50 | 26.10 |
Dimensions of Plain Medium Well Screen (PMS) & Plain Deep Well Screen (PDS) Pipes
Nominal Diameter (DN) | Mean Outer Diameter of the Pipe (d) (mm) | Plain Medium Well Screen (PMS) | Plain Deep Well Screen (PDS) | |||||||
---|---|---|---|---|---|---|---|---|---|---|
Mean Outer Diameter over Connection, (d’s’) | Wall Thickness ’e’ (mm) | Outer Diameter at any point d’e’ (mm) | Mean Outer Diameter over Connection, (d’s’) | Wall Thickness, ’e’ (mm) | ||||||
mm | Min | Max | Max | Min | Max | Min | Max | Max | Min | Max |
200.0 | 225.00 | 225.50 | 243.00 | 10.00 | 11.20 | 224.50 | 225.80 | 247.00 | 13.00 | 14.80 |
250.0 | 280.0 | 280.50 | 298.00 | 12.50 | 14.00 | 279.40 | 280.80 | 304.00 | 16.00 | 17.60 |
300.0 | 330.00 | 330.60 | 352.00 | 14.50 | 16.20 | 329.30 | 331.00 | 359.00 | 19.00 | 21.00 |
350.0 | 400.0 | 400.70 | 428.00 | 17.50 | 19.50 | 399.20 | 401.20 | 433.00 | 21.50 | 23.90 |
400.0 | 450.00 | 450.80 | 479.00 | 19.50 | 21.70 | 449.10 | 451.30 | 490.00 | 23.50 | 26.10 |
Dimensions of Medium Well Casing (CM) & Shallow Well Casing (CS) Pipes
Nominal Diameter (DN) | Mean Outer Diameter of the Pipe (d) (mm) | Medium Well Casing (CM) Pipes | Shallow Well Casing (CS) Pipes | |||||
---|---|---|---|---|---|---|---|---|
Mean Outer Diameter over Connection, (d’s’) | Wall Thickness ’e’ (under ribs) (mm) | Mean Outer Diameter over Connection,(d’s’) | Wall Thickness ’e’ (mm) | |||||
mm | Min | Max | Max | Min | Max | Max | Min | Max |
40.0 | 48.00 | 48.20 | 52.00 | 3.50 | 4.00 | -- | -- | -- |
50.0 | 60.00 | 60.20 | 65.00 | 4.00 | 4.60 | -- | -- | -- |
80.0 | 88.00 | 88.30 | 94.00 | 4.00 | 4.60 | -- | -- | -- |
100.0 | 113.00 | 113.30 | 120.00 | 5.00 | 5.70 | -- | -- | -- |
125.0 | 140.00 | 140.40 | 150.00 | 6.50 | 7.30 | -- | -- | -- |
150.0 | 165.00 | 165.40 | 178.00 | 7.50 | 8.50 | 174.00 | 5.70 | 6.50 |
175.0 | 200.00 | 200.50 | 215.00 | 8.80 | 9.80 | 211.00 | 7.00 | 7.80 |
200.0 | 225.00 | 225.50 | 243.00 | 10.00 | 11.20 | 238.00 | 7.60 | 8.80 |
250.0 | 280.00 | 280.50 | 298.00 | 12.50 | 14.00 | 292.00 | 9.60 | 11.00 |
300.0 | 330.00 | 330.60 | 352.00 | 14.50 | 16.20 | -- | -- | -- |
Note: 32 mm (1¼”) Nominal Diameter pipes are available on special request.
Dimensions of Deep Well Casing (CD) Pipes
Nominal Diameter (DN) | Mean Outer Diameter of the Pipe (d) (mm) | Outer Diameter at any point d’e’ (mm) | Mean Outer Diameter over Connection, (d’s’) | Wall Thickness, ’e’ (mm) | |||
---|---|---|---|---|---|---|---|
mm | Min | Max | Min | Max | Max | Min | Max |
100.0 | 113.00 | 113.30 | 112.80 | 113.40 | 125.00 | 7.00 | 7.90 |
115.0 | 125.00 | 125.30 | 124.90 | 125.40 | 137.00 | 7.50 | 8.50 |
125.0 | 140.00 | 140.40 | 139.70 | 140.50 | 152.00 | 8.00 | 9.00 |
150.0 | 165.00 | 165.40 | 164.60 | 165.60 | 180.00 | 9.50 | 10.70 |
175.0 | 200.00 | 200.50 | 199.60 | 200.60 | 217.00 | 11.80 | 13.60 |
200.0 | 225.00 | 225.50 | 224.50 | 225.80 | 247.00 | 13.00 | 14.80 |
250.0 | 280.00 | 280.50 | 279.40 | 280.80 | 304.00 | 16.00 | 17.60 |
300.0 | 330.00 | 330.60 | 329.30 | 331.00 | 359.00 | 19.00 | 21.00 |
350.0 | 400.00 | 400.70 | 399.20 | 401.20 | 433.00 | 21.50 | 23.90 |
400.0 | 150.00 | 450.80 | 449.10 | 451.30 | 490.00 | 23.50 | 26.10 |
